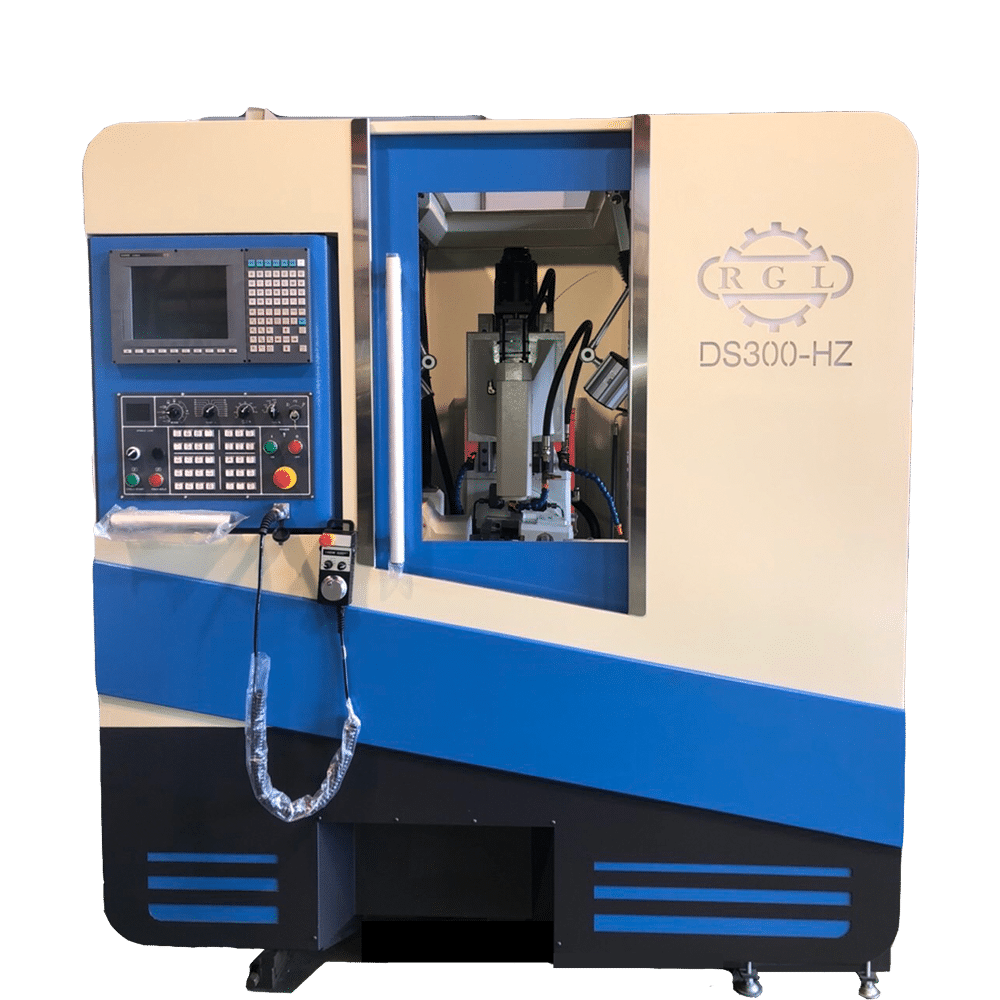

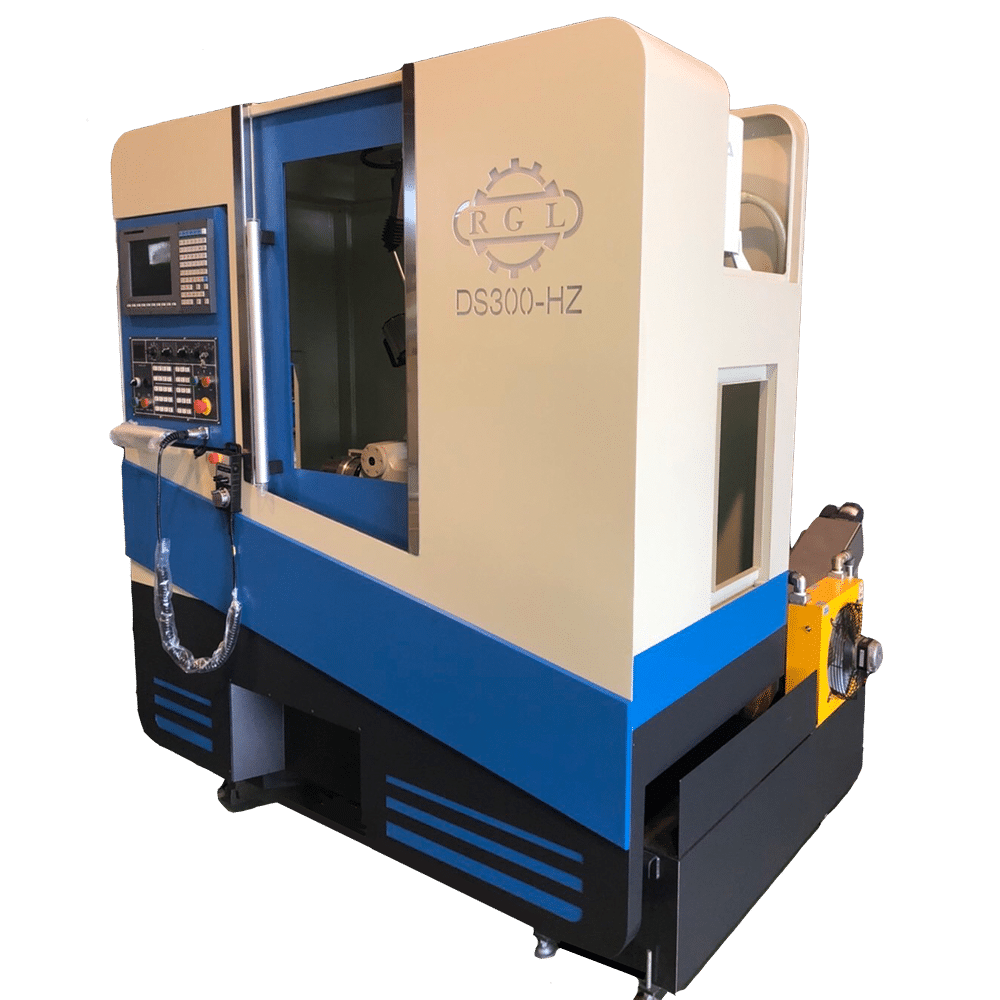

CAPACITY |
|
|---|---|
|
Range of module
|
M0.25 - M3.5
|
|
Degrees of indexing
|
360°
|
|
Max. cutting length
|
300mm
|
|
Max. cutting diameter
|
40mm
|
|
Max. tool dia. (hole * Keyway)
|
110* 25.4* 6.35 mm
|
|
Helical angle
|
R.H.45°, L.H. 90°
|
|
Workpiece clamping method
|
collet type
|
|
Tailstock method
|
Servomotor
|
|
Number of simultaneously moving shaft
|
8‐Axis simultaneous processing
|
SPEED |
|
|---|---|
|
Max. speed of X‐axis (for. / back.)
|
5000 mm/min
|
|
Max. speed of Y‐axis (right / left)
|
5000 mm/min
|
|
Max. speed of Y2‐axis (right / left)
|
5000 mm/min
|
|
Max. speed of A‐axis (chuck)
|
6000 mm/min
|
|
Max. speed of B‐axis (Cutter tilting axis)
|
300 mm/min
|
|
Max. speed of Z‐axis (up / down)
|
5000 mm/min
|
|
Max. angular speed of S1‐axis cutter
|
1500 rpm
|
|
Max. angular speed of S2‐axis cutter
|
6000 rpm
|
|
Max. speed of cutting stroke
|
5000 mm/min
|
ACCURACY |
|
|---|---|
|
Perpendicularity of machining
|
± 5μm / 100mm
|
|
Workpiece precision
|
3~4 levels
|
|
Workpiece surface quality (μm)
|
Ra 0.8
|
MOTOR |
|
|---|---|
|
X axis motor
|
1.8KW / 11.5NM
|
|
Y axis motor
|
1.8KW / 11.5NM
|
|
Y2 axis motor
|
1.3KW / 8.34NM
|
|
A axis motor
|
0.85KW / 5.39NM
|
|
B axis motor (Cutter tilting axis)
|
0.4KW / 1.27NM
|
|
Z axis motor
|
0.85KW / 5.39NM
|
|
S1 axis cutter motor
|
4.4KW / 28.4NM
|
|
S2 axis cutter motor
|
1KW / 3.18NM
|
|
Cutting fluid motor
|
1.5 KW (2HP)
|
|
Hydraulic motor
|
0.75 KW (1HP)
|
|
Oil controller
|
0.15 KW
|
|
Cutting fluid separation tank
|
0.1 KW (1/8HP)
|
|
mist collector
|
0.25 KW
|
|
Chip conveyor
|
40 W
|
MISCELLANEOUS |
|
|---|---|
|
Total power (KW)
|
18 KW
|
|
Machine dimensions
|
206* 155* 198 CM
|
|
positioning space dimensions
|
211* 212* 243 CM
|
|
Packing dimensions
|
236* 232* 228 CM
|
